Aluminium pergola installation: footings, posts and louvres

A pergola with adjustable louvres gives shade in summer and shelter from rain, but it only stands firm on good footings and a sound fixing to the wall. Below is how an aluminium pergola is installed step by step, what affects the cost and what to prepare before the tradesperson arrives.

Order a handyman Describe the job and handymen send their prices
Aluminium pergola installation: footings, posts and louvres

What the installation cost depends on

The labour price depends on the pergola size, the number of posts, the base (lawn, paving, timber decking) and whether it is wall-mounted or freestanding. Footings for the posts are a separate job: digging, formwork, concrete and anchors.

Service price table
ServicePrice
Inspection and measurement200–300 zł/h
Handyman work - hourly rate250–300 zł/h

Indicative prices. Ranges for a typical scope. Fixings included, materials separate. Minimum order 300 zł.

Pergola installation is usually priced for the whole job, after photos of the spot and the maker’s instructions. The pergola itself, concrete and anchors are bought by the client or agreed in the offer.

Rather hand the job over? More here: handyman services in Warsaw.

How the installation goes, step by step

  1. Mark out the post positions to the pergola’s dimensions and check for services in the ground.
  2. Dig and pour concrete footings with anchors, then leave the concrete to cure.
  3. Fix the posts on the anchors and check they are plumb.
  4. Fix the wall beam to the façade with anchors chosen for that wall.
  5. Assemble the roof frame and fit the louvres and mechanism (crank or motor).
  6. Connect the LED lighting in the frame and adjust the louvres.
Aluminium pergola by the terrace, seen from the garden

Common mistakes

  • Posts stood straight on paving or decking with no footing. The structure moves in the wind.
  • Façade anchors chosen without checking what is under the render. Insulation will not hold the beam.
  • No fall or outlet for water from the gutter in the frame, so it pours under the terrace door.
  • Loading the posts before the concrete has cured.

How to prepare for the job

Have the pergola maker’s installation manual ready and photos of the spot: façade, terrace and ground. In a block of flats, agree fixing to the façade with the residents’ association or building manager first. If the pergola has lighting, say where the nearest outdoor socket or cable is.

Connecting the lighting to the 230 V supply is done by someone qualified for electrical work.

A real example: louvred pergola by a terrace

The pergola stands by the terrace of a ground-floor flat. The tradesperson poured footings for two posts in the garden, fixed the frame to the façade, assembled the roof with crank-operated louvres and connected the LED lighting in the frame.

Completed job

Aluminium louvred pergola by the terrace

  • concrete footings for the posts
  • frame assembled and fixed to the façade
  • louvres adjusted with a crank
  • LED lighting in the frame

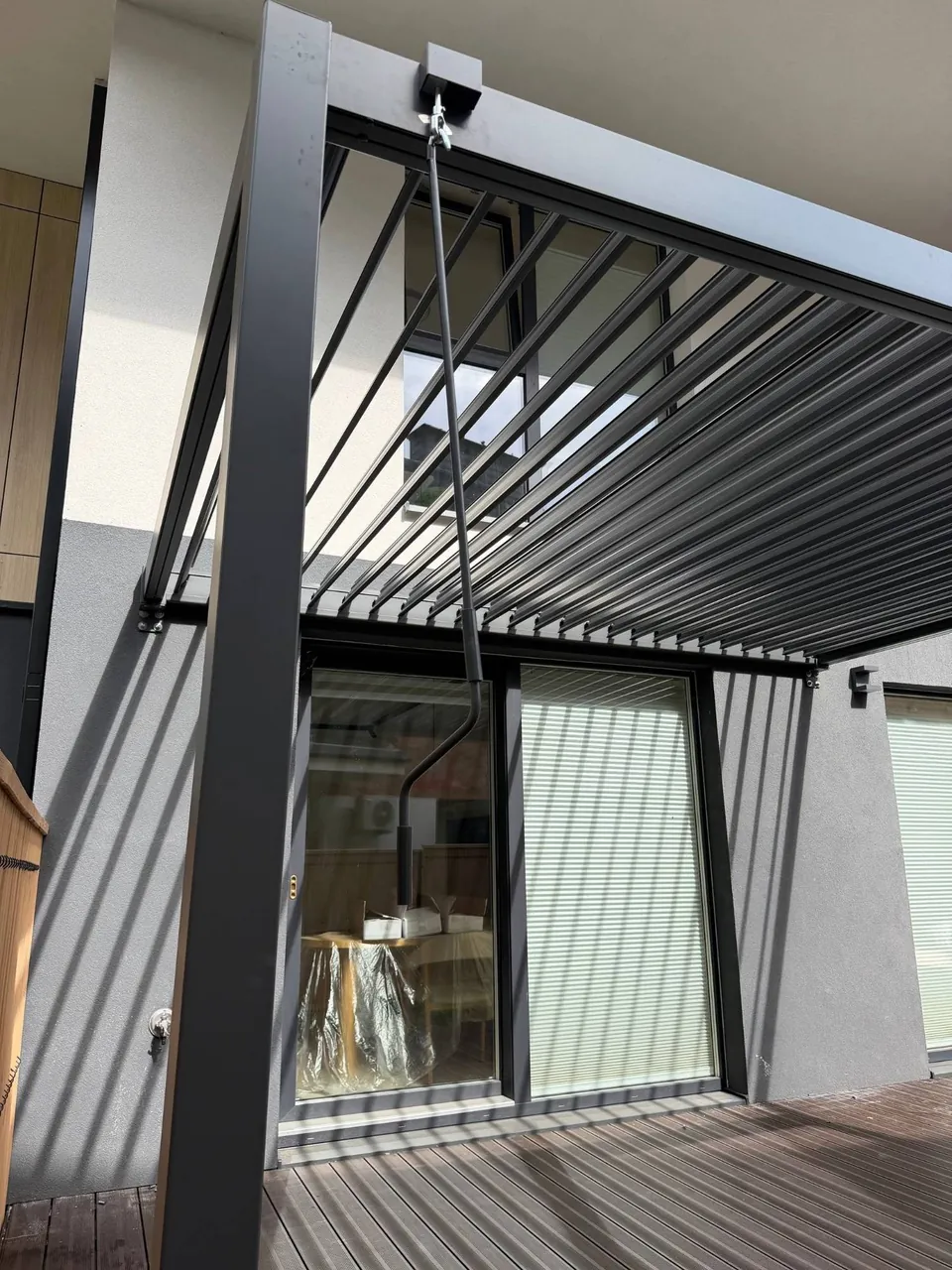

Aluminium louvred pergola by the terrace: photo 1 of 4Aluminium louvred pergola by the terrace: photo 2 of 4Aluminium louvred pergola by the terrace: photo 3 of 4Aluminium louvred pergola by the terrace: photo 4 of 4
Job done by a HandyMan24 tradesperson.Book a similar job

Frequently asked questions

Can a pergola be fixed to the wall of a block of flats?

Yes, but in a block of flats you need consent from the residents’ association or manager, and the anchors are chosen for what is under the render.

Does a pergola need footings?

Posts on soil do. On a terrace with a concrete slab, posts can be bolted to the slab if it is thick enough.

How long does installation take?

Fitting the structure usually takes one to two days. Before that, the concrete in the footings needs time to cure.

Do the louvres keep the rain off?

Closed louvres on a bioclimatic pergola drain water into gutters in the frame. In wind-driven rain the open sides still let water in.

Author

Aleks, founder of HandyMan24

Author

Aleks

Founder of handyman24 and author of the blog

A technical college on the electrical side, wooden staircases, four years on furniture and worktops. In Warsaw since 2022: first with a case of tools, now with a roster of tradespeople and this blog.
